Predict contacts · contacts

Rank pairs of alignment positions by the strength of their couplings:

adabmDCA contacts -p model/params.dat.gz -o contacts

Positions in contact in the three-dimensional structure tend to co-evolve, and a Potts model captures this as strong direct couplings, separated from the indirect correlations that propagate through chains of contacts. The score of a pair is the Frobenius norm of its coupling block, corrected for the background of each position (average product correction, APC).

Inputs

Option Meaning
-p, --path_params params.dat(.gz) or ptt.h5
-d, --data Without -p: compute scores from the alignment with the fast mean-field approximation instead of a trained model
--pseudocount Mean-field regularization (default 0.5)
-o, -l Output folder and optional file prefix

The mean-field route needs no training and is useful as a quick baseline; models trained by maximum likelihood (bmDCA) usually give better contact predictions.

Outputs

File Content
contact_map.csv Columns position_i, position_j, score for every pair
contact_map.txt The same, headerless (format of earlier versions)
contact_map.npy The full symmetric \(L\times L\) score matrix, zero on the diagonal
contact_map.json Method and model metadata
contact_map.png The score matrix as an image

Positions are zero-based alignment columns.

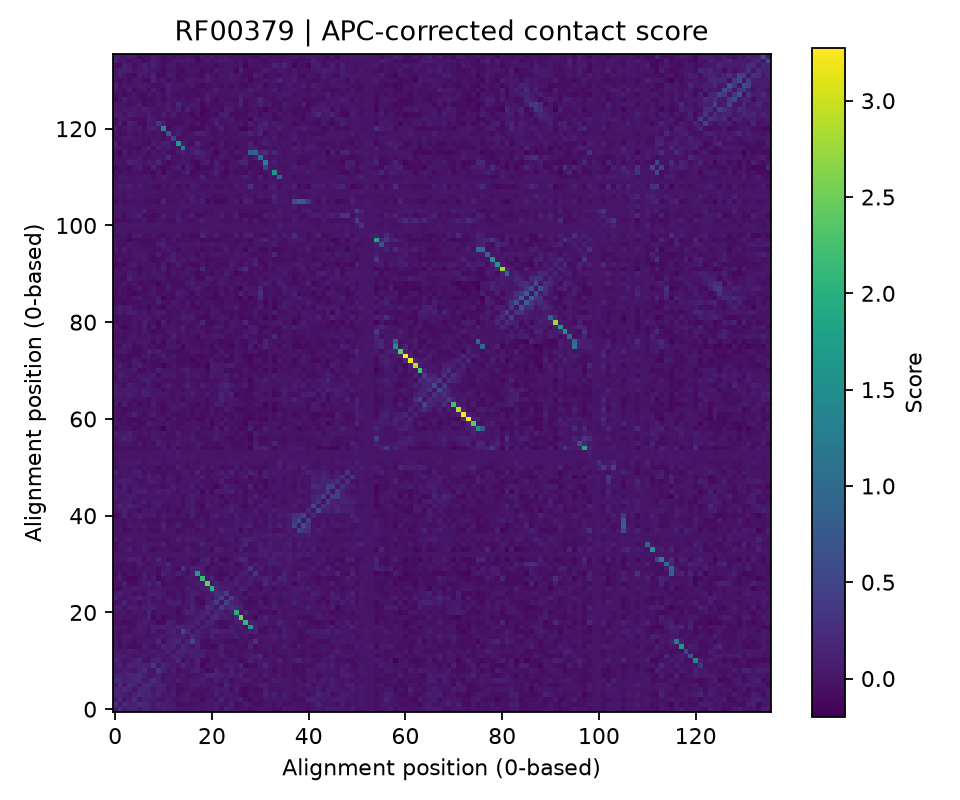

APC-corrected contact scores for RF00379

RF00379: bright pairs have high scores. The anti-diagonal stripes are the base-paired helices of the RNA secondary structure.

Interpreting the scores

  • Scores rank pairs; they are not probabilities. The usual way to use them is to take the top \(L\) or \(L/2\) pairs, excluding pairs closer than a few positions along the sequence (\(|i-j| \le 4\) for proteins), which are trivially correlated.
  • Gaps are excluded from the norm, and the couplings are first moved to the zero-sum gauge, so the score does not depend on how the model split its parameters between fields and couplings.
  • Sparse models (eaDCA, edgeDCA, edDCA) give a score of exactly zero to pairs without couplings; their non-zero pairs are a candidate contact list by construction.
  • Alignment positions must be mapped to residue numbers of a structure before comparing with a contact map.

In Python

from adabmDCA import load_model, predict_contacts

model = load_model("model/params.dat.gz", alphabet="rna")
contacts = predict_contacts(model=model)
pairs = contacts.to_long_dataframe()                     # position_i, position_j, score
top = pairs[pairs.position_j - pairs.position_i > 4].nlargest(136, "score")

Definition: contact scores.
